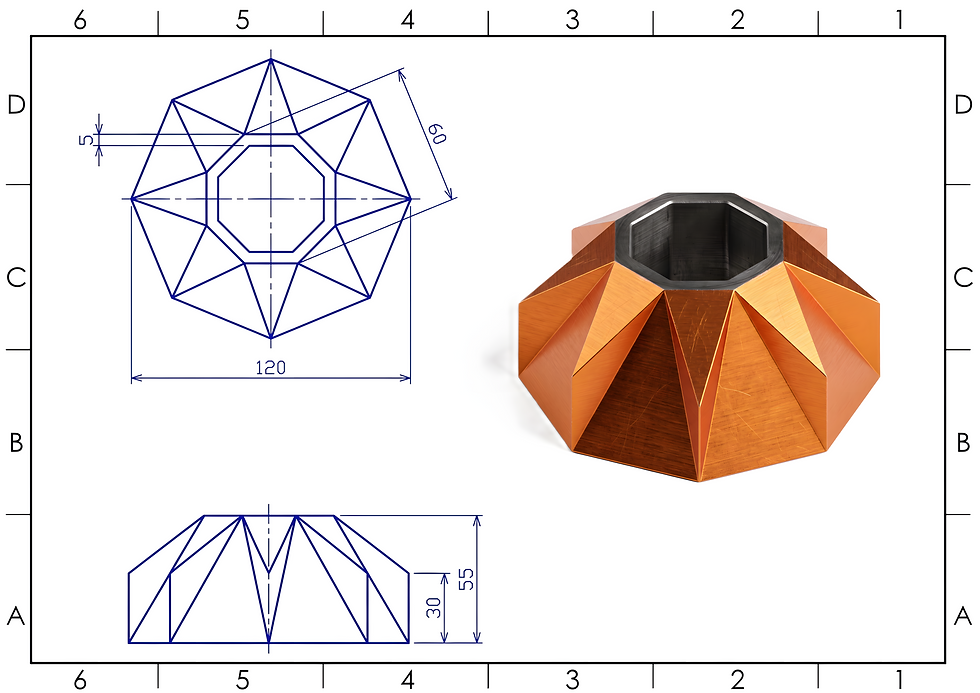

3D Exercise 184
Features used to make this exercise:
In this CAD tutorial we'll use the features:
Extrude to Surface: Extends a sketch profile until it reaches a selected surface, allowing the feature to conform to the surface geometry.
Loft Surface: Creates a smooth surface transition between two or more selected profiles or edges.
Circular Pattern: Creates multiple copies of a feature, face, body, or component around a selected axis.
All dimensions are in mm/g/s/ISO
2D Sketch
Tip: Subscribe to the channel for more tutorials like this.
